Sparepart or replacement vaporiser Primus 77/76/80

Discussion in 'Stove Paraffinalia' started by tretrop, Feb 15, 2023.

  1. tretrop

    tretrop Subscriber

    Offline
    Joined:
    Aug 9, 2017
    Messages:
    329
    Location:
    Sweden
    I think this is a spare for the Primus 76/77/80 stoves, but it feels really heavy.
    20230215_122141.JPG 20230215_122146.JPG 20230215_122159.JPG 20230215_122444.JPG 20230215_122455.JPG

  2. presscall

    presscall United Kingdom PotY Winner SotM Winner SotY Winner Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    13,883
    Location:
    Lancashire, United Kingdom

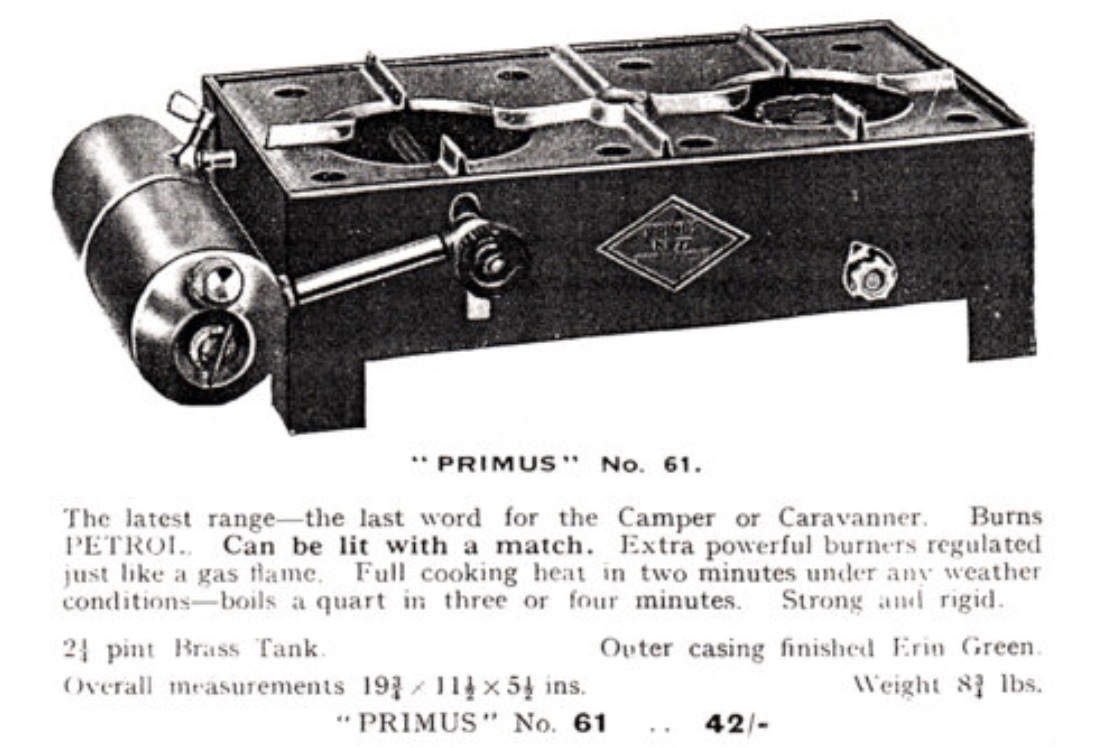

    The plastic knob (steel pressing on 76/77 stoves) makes it a spare for a Primus 61 indoor stove.



    I encountered one when restoring my Primus 77, having a spare fuel tank and components from a ‘61’.

    ‘77’ control spindle and knob pictured top, ‘61’ components bottom. The plastic knob has a thicker hub section and you can see how its corresponding knob mounting section is longer to accommodate that.




    Apart from the plastic knob and spindle mount for it, the generator and other components are identical to their 76/77 stove equivalents.

  3. tretrop

    tretrop Subscriber

    Offline
    Joined:
    Aug 9, 2017
    Messages:
    329
    Location:
    Sweden

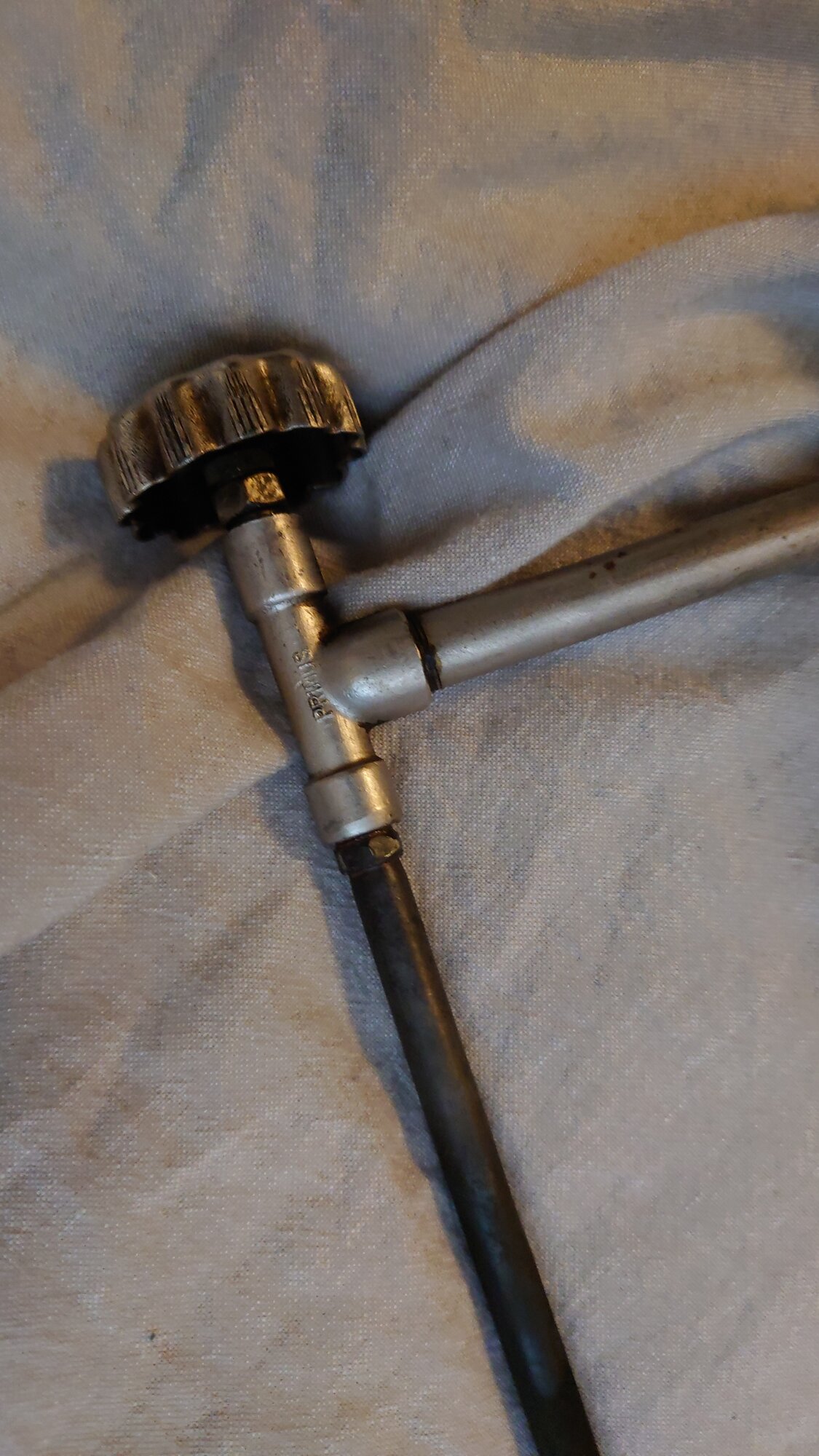

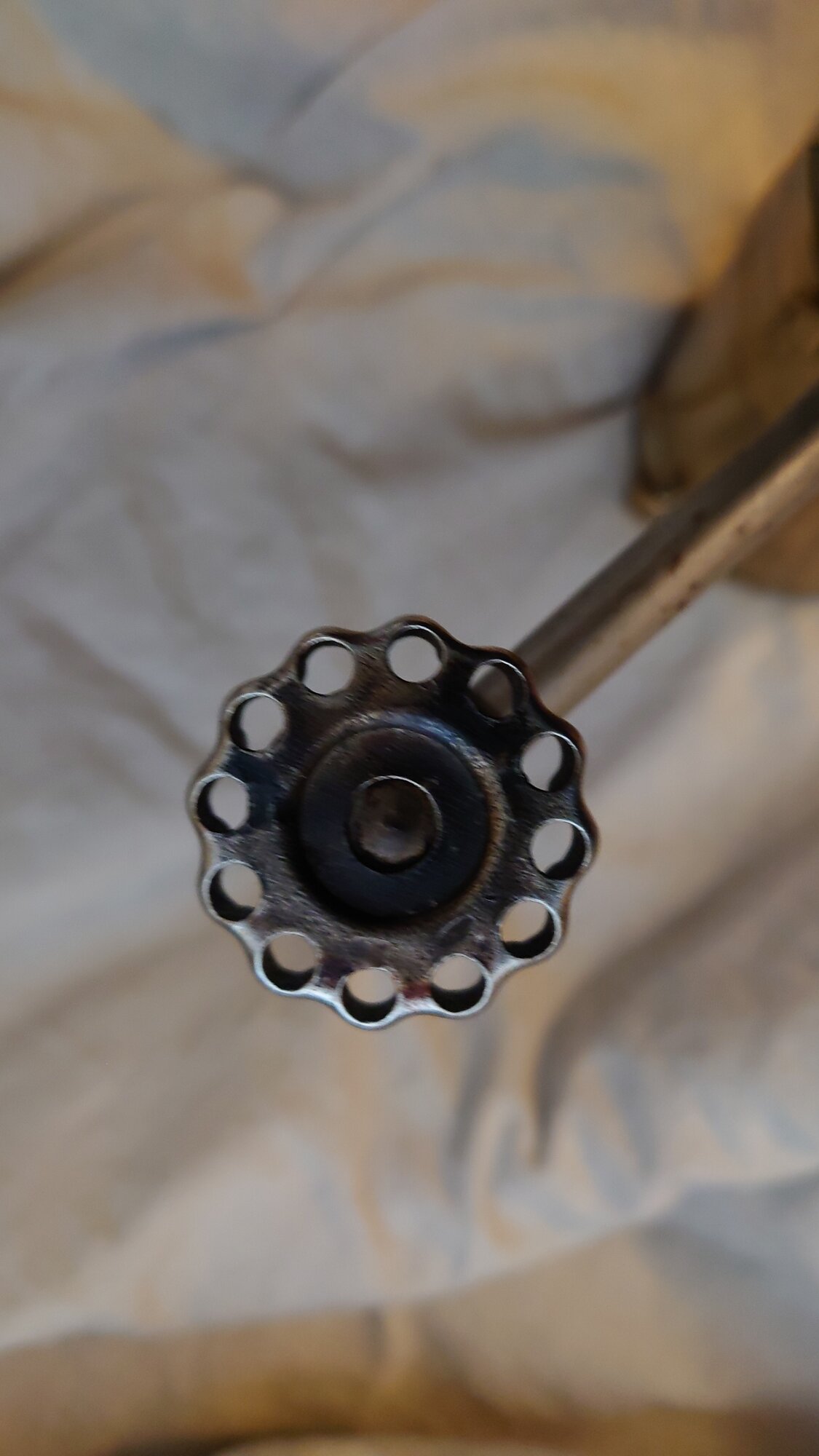

    I think that the vaporiser looks thinner on the older 76/77 this is from my Primus 76, stamped U (1930)

    20230218_094520.JPG 20230218_094541.JPG 20230218_094547.JPG
